Feeding
Magnetic regulating plates fit manual feedThe overlap regulator adjusts the sheets overlapped length
The operator replenishes sheets on the run to provide a continuous feed
Laminator
Oil-heated, chrome laminating roller (Φ320 large diameter)
Counter-pressure rubber roller
Hydraulic pressure system exerts constant and steady pressureFilm mounted on a quick-change inflatable air-shaft with the scale on it
Air-shaft ensures precise film release tension and speed
Film roll slitting and perforating mechanisms
Sheeter
Adjustable pro-active, anti-curl bar takes the curl out of laminated sheets
Adjustable sheeting pressure
Stable and efficient pneumatic sheeting system
Sheets collecting
Corrugated delivery system flattens and delivers sheetsVibrating jogger table
Others
User-friendly design, refined appearance, as well as space-saving structure
Touch screen
|
Overlap regulator
|
|
|

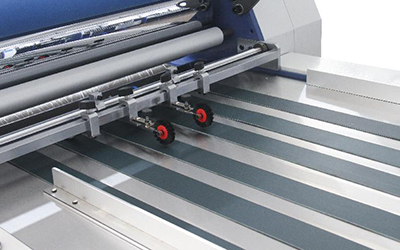

Pneumatic sheeter |
|

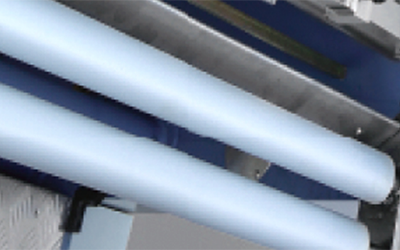

Anti-curl assembly
|
|
|

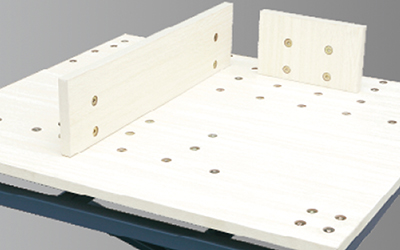

Vibrating jogger table
|
|
Model |
SFML-720A |

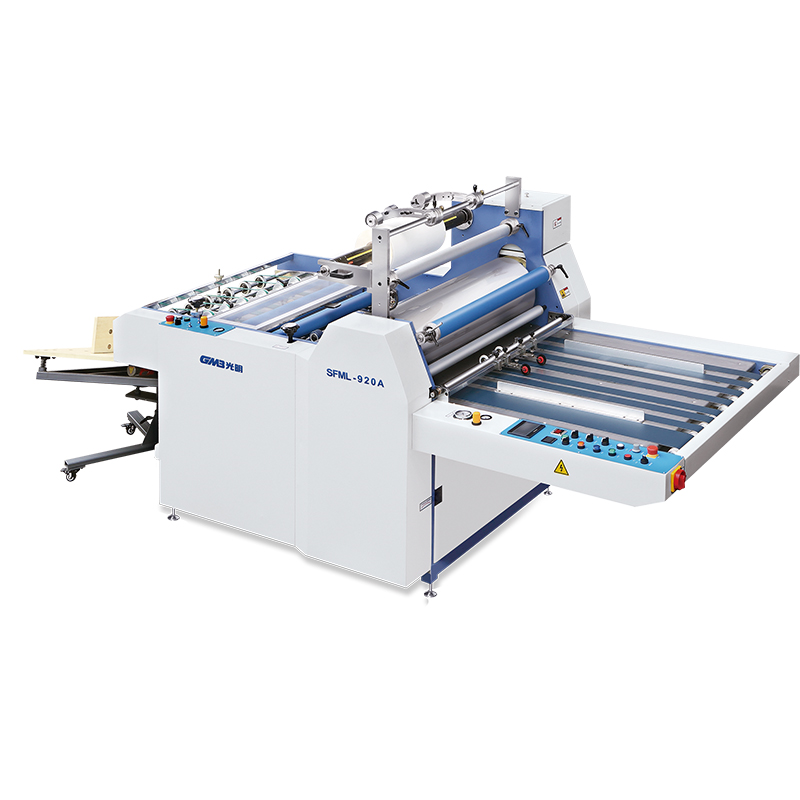

SFML-920A |
|
Max Sheet Size (mm) |
720 (width) |
920 (width) |
|
Laminating Speed (m/min) |
0-30 |
0-30 |
|
Sheet Thickness (g/m2) |
100-500 |
100-500 |
|
Gross Power (KW) |
18 |
19 |
|
Total Weight (kg) |
1600 |
1800 |
|
Overall Dimensions (mm) |
4000*1470*1650 |
4000*1670*1650 |
