Feeder

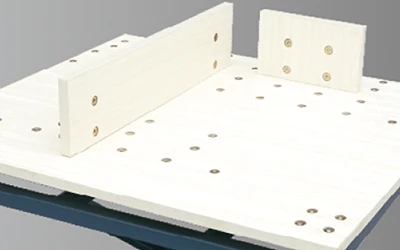

Magnetic regulating plates fit manual feedThe overlap regulator adjusts the sheets overlapped length
The operator replenishes sheets on the run to provide a continuous feed
Laminator
Oil-heated, chrome laminating roller (Φ320 large diameter)Counter-pressure rubber roller
Hydraulic pressure system exerts a constant and steady pressure
Film mounted on a quick-change inflatable air-shaft with the scale on it
Air-shaft ensures precise film release tension and speed
Film roll slitting and perforating mechanisms
Sheeter
Stable and efficient pneumatic sheeting system
Adjustable pro-active, anti-curl assembly takes the curl out of laminated sheets
Rotatory knives make a short slit at the overlapped joint of sheets webSheets collecting
Corrugated delivery system flattens and delivers sheetsVibrating jogger table
Others
Separated structure convenient for machine maintenance and repairTouch screen
|

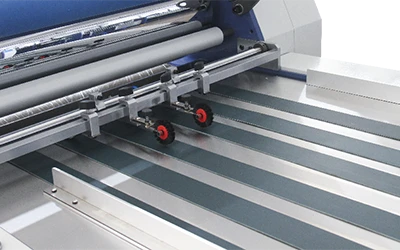

The overlap regulator adjusts the sheets overlapped length
|

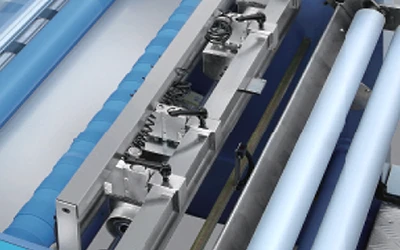

Rotatory knives make a short slit at the overlapped joint of sheets web
|
||
|
Pneumatic Sheeter
|
Vibrating Jogger Table
|
||
|

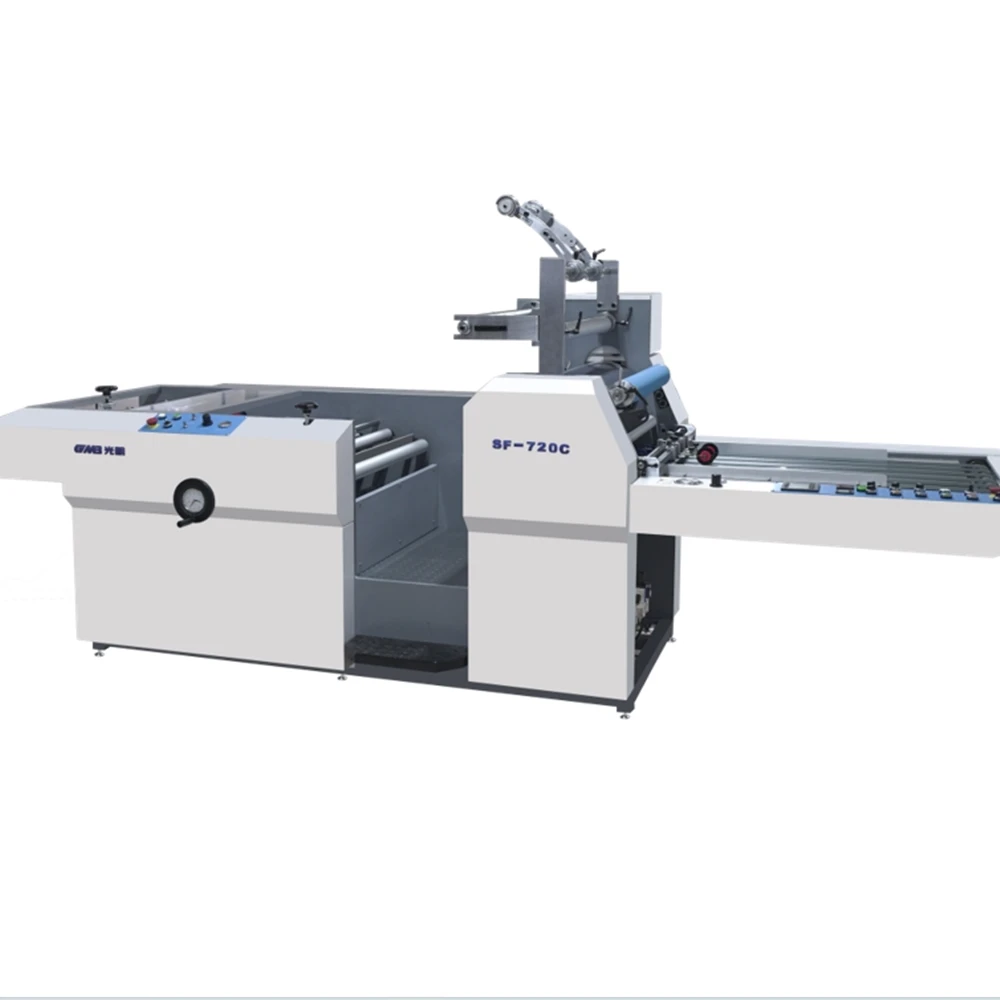

Model |
SF-720C |
SF-920C |
SF-1100C |
|
Max Sheet Size (mm) |
720 (width) |
920 (width) |
1100 (width) |
|
Laminating Speed (m/min) |
0-30 |
0-30 |
0-30 |
|
Sheet Thickness (g/m2) |
100-500 |
100-500 |
100-500 |
|
Gross Power (KW) |
18 |
19 |
20 |
|
Total Weight (kg) |
1700 |
1900 |
2100 |
|
Overall Dimensions (mm) |
4600*1560*1500 |
4600*1760*1500 |
4600*1950*1500 |
