Feeding
Magnetic regulating plates fit manual feed
The overlap regulator adjusts the sheets overlapped length
The operator replenishes sheets on the run to provide a continuous feed
Slotting device
Double slotting device
Laminator
Electromagnetic-heated, chrome laminating rollers and hydraulic pressure system
Double-sided laminating system
Film mounted on quick-change inflatable air-shafts
Air-shafts ensure precise film release tension and speed
Film roll slitting and perforating mechanisms
Embosser
Electromagnetic-heated, embossing rollers and hydraulic pressure system
Double-sided embossing system
Sheeter
Adjustable sheeting pressure
Stable and efficient pneumatic sheeting system
Sheets collecting
Vibrating jogger table
Others
Double slotting & double-sided laminating and embossing are finished in one pass
|
Overlap regulator
|
Double slotting
|
||
|
Laminating & Embossing unit
|
Pneumatic sheeting system
|
||
|
Vibrating jogger table
|

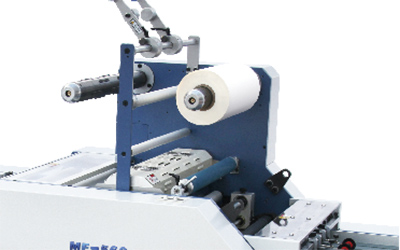

Double air-shafts
|
||
|
|
MF-560B |
|
Max Paper Size |
560mm |
|
Laminating Speed |
0-20m/min |
|
Paper Thickness |
105-500g/m2 |
|
Gross Power |
18KW |
|
Total Weight |
1650kg |
|
Overall Dimensions |
3500*1280*1650mm |
