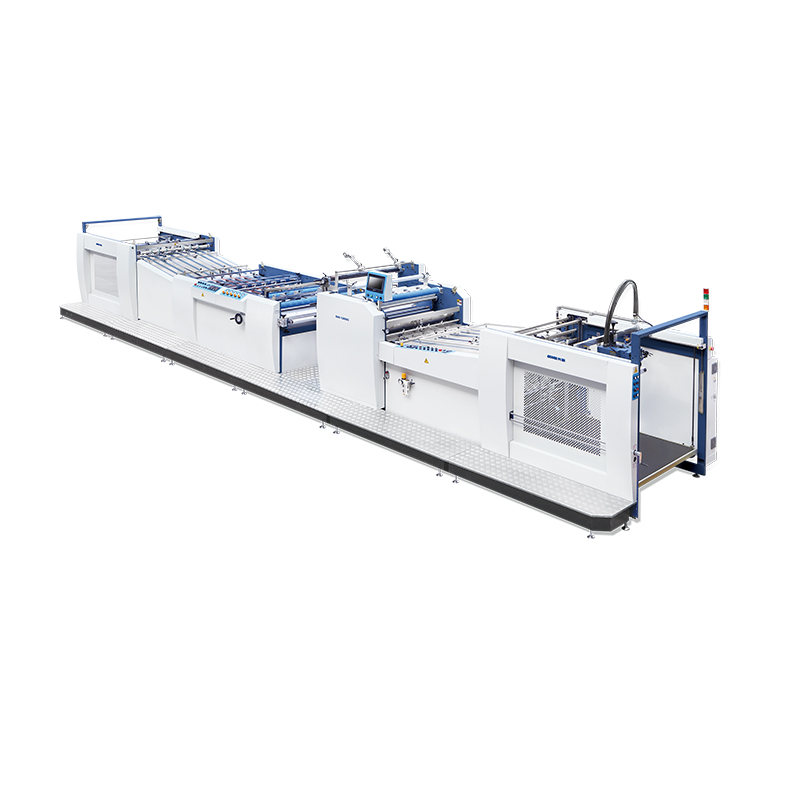

Feeder
Sheets pre-stacker provides a continuous feed without a stop
Servo-controlled feeder head replenishes sheets
Sheets gap sensor for self-protection
The overlap regulator adjusts the sheets overlapped length

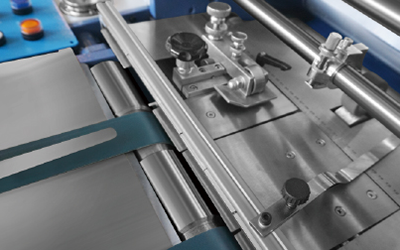

Side-lay regulator aligns sheets
Powder remover

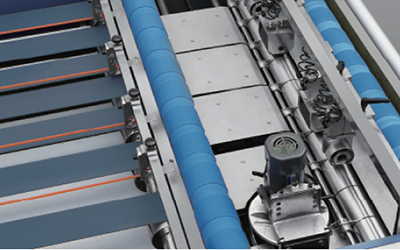

Electric-heated powder remover improves film-sheet fastness and laminating effect
Laminator
Electromagnetic-heated, chrome laminating roller
Hydraulic pump along with rubber roller exerts big, even and constant laminating pressure

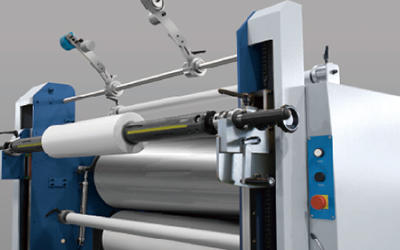

Film mounted on a quick-change, micro-adjustable, electric air-shaft
Air-shaft ensures precise film release tension and speed
Film roll slitting and perforating mechanisms
Laminating pressure up to 10MPa
Sheeter

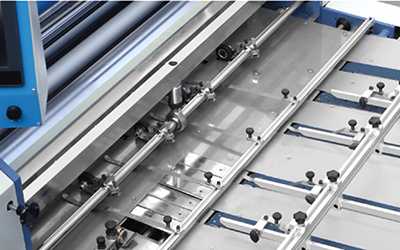

Adjustable pro-active, anti-curl bar takes the curl out of laminated sheets
Steer wheel exerts negative force on one side to help with sheeting
High-speed mechanical sheeting system driven by steady pneumatic assembly
Stacker
Corrugated delivery system flattens and delivers sheetsSide joggers and back-stop stack sheets in order
Non-stop automatic stacker with a sheets counter
Others
Feed, overlap adjustment, laminating, sheeting and stacking are finished in one passTouch screen and control panel with colourful buttons
|
Feeder head
|
Side-lay regulator
|
||
|
Overlap regulator
|
Electric-heated powder remover
|
||
|
Electric air-shaft
|
Electromagnetic-heated laminating unit
|
||
|
High-speed mechanical sheeter
|
High Speed Stacker
|
||
|
Optional
|
|||
|
Chain knife sheeting system facilitates PET and PVC film sheeting
|
Double lamination unit improves laminated film fastness
|
||
|
UV film reinforcement system avoids film peeling and blisters
|
|
||
|
Model |
SW-1200G |
SW-1200G |
|
Max Sheet Size (mm) |
1200*1450 |
1200*1650 |
|
Min Sheet Size (mm) |
390*450 |
390*450 |
|
Laminating Speed (m/min) |
0-120 |
0-120 |
|
Sheet Thickness (g/m2) |
105-500 |
105-500 |
|
Gross Power (KW) |
50/25 |
50/25 |
|
Total Weight (kg) |
6600 |
7600 |
|
Overall Dimensions (mm) |
10600*2400*1900 |
11500*2400*1900 |
|
Pre-stacker (mm) |
1850 |
2450 |
