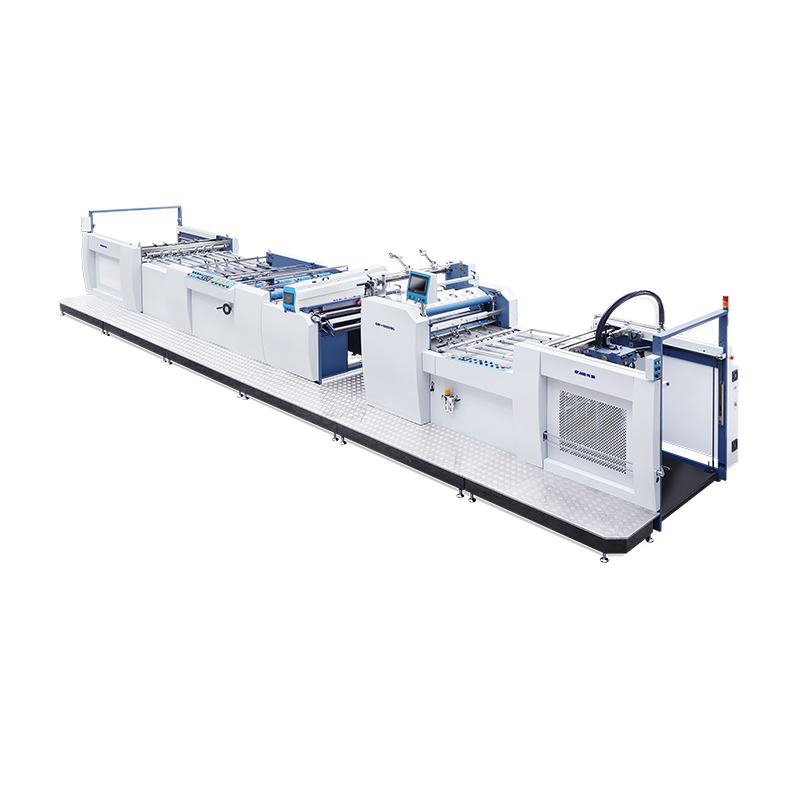

Feeder
Sheets pre-stacker provides a continuous feed without a stop
Servo-controlled feeder head replenishes sheets
Sheets gap sensor for self-protection
The overlap regulator adjusts the sheets overlapped length

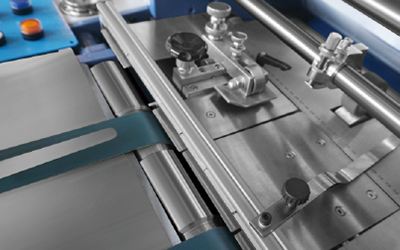

Side-lay regulator aligns sheets
Laminator
Electromagnetic-heated, chrome laminating roller
Hydraulic pump along with rubber roller exerts a big, even and constant laminating pressure

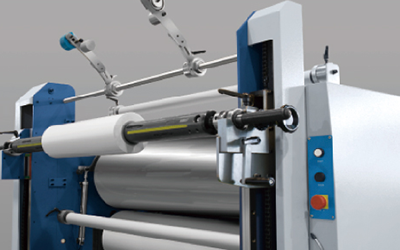

Film mounted on a quick-change, micro-adjustable, electric air-shaft
Air-shaft ensures precise film release tension and speed
Film roll slitting and perforating mechanisms
Laminating pressure up to 10MPa
Sheeter

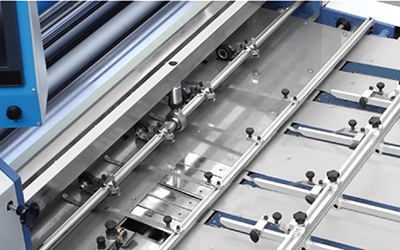

Adjustable pro-active, anti-curl bar takes the curl out of laminated sheets
Steer wheel exerts negative force on one side to help with sheeting
Equipped with both high-speed mechanical and chain knife sheeting systems
Chain knife sheeting system facilitates PET and PVC film sheeting
High Speed Stacker

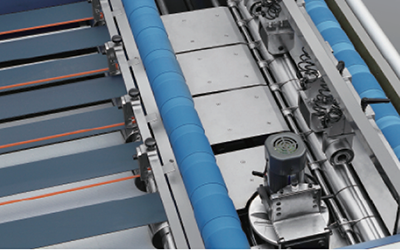

Corrugated delivery system flattens and delivers sheetsSide joggers and back-stop stack sheets in order
Non-stop automatic high-speed stacker with a sheets counter
Others
Feed, overlap adjustment, laminating, sheeting and stacking are finished in one passTouch screen and control panel with colourful buttons
|
Feeder head
|
Side-lay regulator
|
||
|
Overlap regulator
|
Electromagnetic-heated laminating unit
|
||
|
Electric air-shaft
|
Chain knife sheeting system
|
||
|
High-speed mechanical sheeter
|
High-speed stacker
|
||
|
Optional |
|||
|
Electric-heated powder remover
|
Double lamination unit improves laminated film fastness
|
||
|
UV film reinforcement system avoids film peeling and blisters
|
|
||
|
Model |
SW-1050GL |
|
Max Sheet Size (mm) |
1050*1200 |
|
Min Sheet Size (mm) |
350*350 |
|
Laminating Speed (m/min) |
0-120/ 0-75(Chain Knife) |
|
Sheet Thickness (g/m2) |
90-600 |
|
Gross Power (KW) |
40/20 ( air compressor+5.5) |
|
Total Weight (kg) |
5300 |
|
Overall Dimensions (mm) |
10900*2400*1900 |
|
Pre-stacker (mm) |
1850 |
