Feeder
Sheets pre-stacker provides a continuous feed without a stopServo-controlled feeder head, synchronizing with the host speed, replenishes sheets
Sheets gap sensor for self-protection
The overlap regulator adjusts the sheet overlapped length
Side-lay regulator aligns sheets
Powder remover
Electric-heated powder remover improves film-sheet fastness and laminating effect
Laminator
Electromagnetic-heated, chrome laminating rollerHydraulic pump along with rubber roller exerts a big, even and constant laminating pressure
Film mounted on an automatic electric lifting air-shaft
Air-shaft ensures precise film release tension and speed
Film roll slitting and perforating mechanisms
Laminating pressure up to 10 MPa
Sheeter
Adjustable pro-active, anti-curl bar takes the curl out of laminated sheetsSteer wheels exert negative force on one side to help with sheeting
High-speed mechanical sheeting system driven by steady pneumatic assembly and equipped with a photoelectric detection
Stacker
Corrugated delivery system flattens and delivers sheetsSide joggers and back-stop stack sheets in order
Height-adjustable pallet
Others
Feed, overlap and side-lay adjustment, powder removal, laminating, sheeting and stacking can be finished in one passTouch screen and control panel with colourful buttons
Double laminating unit reinforces film lamination
High platform matches the height of the printing machine
|
Auto feeder
|

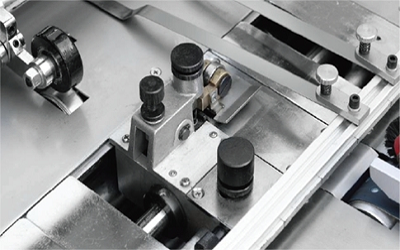

Side-lay regulator
|
||
|
Electromagnetic-heated laminating unit
|
Double laminating unit
|
||
|
High-speed mechanical sheeter
|
High-speed stacker
|
||
|
Optional
|
|||
|
UV film reinforcement system avoids film peeling and blisters |
Chain knife sheeting system facilitates PET and PVC film sheeting |
||
|
Model |
G-1200+2 |
|
Max Sheet Size (mm) |
1200*1650 |
|
Min Sheet Size (mm) |
450*450 |
|
Laminating Speed (m/min) |
0-120 |
|
Sheet Thickness (g/m2) |
100-500 |
|
Gross Power (KW) |
60/35 |
|
Total Weight (kg) |
11000 |
|
Overall Dimensions (mm) |
14000*2820*2400 |
|
Pre-stacker (mm) |
1850 |
